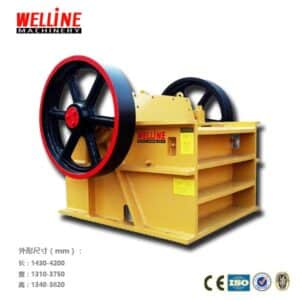

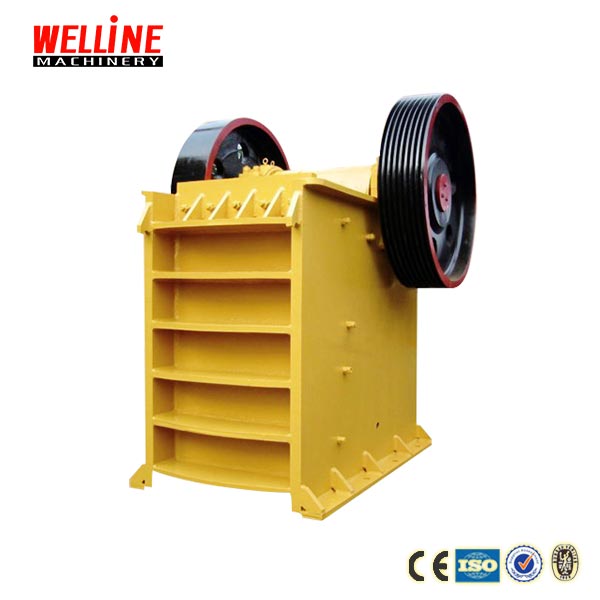

Jaw Crusher
Application: The crushing of ores and bulk materials with compressive strength not higher than 320 Mpa in mining, building materials, highways, railways, water conservancy and chemical industries
Crushing Material: Granite, dolomite, pebble, quartzite, calcite and so on.
Product Description
Jaw crusher is the most commonly used crusher in the world, with simple structure and convenient maintenance. All stones can be crushed.
It is the first crusher in the stone crushing production lines. When crushing high-hardness stones such as river pebbles and granite, the wear of the jaw plate will increase, and the production cost will increase.
What can this machine do?
-Break big rocks into small rocks.
The feed size and discharge size are related to the equipment model. The larger the equipment model, the larger the input size and output size.
Product Advantages
- Two types available, standard model and special Model(for secondary crushing).
- There are many options based on production capacity, ranging from 3 tons/hr to 500 tons/hr
- Excellent spare parts material: Jaw Plate: Mn13Cr2/Mn18Cr2
- Simple structure and reliable operation: The jaw crusher has a simple structure, which makes it more reliable and convenient maintenance
- The output size can be changed by adjusting the gap between the movable jaw plate and the fixed jaw plate.
- Can customize automatic butter filling machine and lifting crane.
Product Parameter
PE Model
Standard model, suitable for primary crushing in production lines
PEX Model
Special model with smaller feed opening size, fixed width, extended length, suitable for secondary crushing in production line, cheaper than cone crusher
| Model | 250x400 | 400x600 | 500x750 | 600x900 | 750x1060 | 900x1200 | 1000x1200 |
|---|---|---|---|---|---|---|---|
| Capacity(tph) | 20 | 40-50 | 80-100 | 100-150 | 150-200 | 200-300 | 300 |
| Feed Size(mm) | 200 | 350 | 425 | 480 | 630 | 750 | 850 |
| Out Size(mm) | 20-50 | 40-100 | 50-100 | 65-160 | 80-140 | 95-165 | 150-300 |
| Power(kw) | 15 | 37 | 55 | 75/90 | 110 | 132 | 132 |
| Weight(tons) | 3 | 7 | 12 | 17 | 29 | 48 | 55 |
All technical parameters listed are for reference only and may be adjusted according to actual operating conditions.
| Model | 150x250 | 150x750 | 250x750 | 250x1000 | 250x1200 | 300x1300 | 500x1500 |
|---|---|---|---|---|---|---|---|
| Capacity (tph) | 3-5 | 5-15 | 25 | 40 | 50 | 70 | 100 |
| Feed Size(mm) | 125 | 125 | 210 | 210 | 210 | 250 | 400 |
| Out Size(mm) | 10-40 | 18-48 | 25-60 | 25-60 | 25-60 | 25-60 | 25-60 |
| Power(kw) | 5.5 | 15 | 22 | 30 | 37 | 55 | 90 |
| Weight(tons) | 0.5 | 2.5 | 5 | 6 | 7.5 | 13 | 15 |
All technical parameters listed are for reference only and may be adjusted according to actual operating conditions.
