Stone Crushing Machine

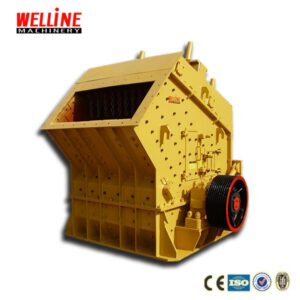

Impact Crusher
Application: Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Sand Making, Chemical, Road, Railway
Crushing Material: Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, Manganese Ore, etc.
Product Description
All stones can be crushed, but it is recommended to crush stones with low hardness, Mohs hardness below 5 and compressive strength below 350MPa. When crushing high-hardness stones such as river pebbles and granite, the wear of the hammer head and the impact plate will increase significantly, and the production cost will increase.
What can this machine do?
-Break big rocks into small rocks.
The feed size and discharge size are related to the equipment model. The larger the equipment model, the larger the input size and output size.
Product Advantages
- Two types available, standard model and special enlarged feed port Model.
- There are many options based on production capacity, ranging from 50 tons/hr to 500 tons/hr
- Excellent spare parts material: Hammer head: Cr26
- Equipped with hydraulic device, the equipment cavity can be easily opened to replace wearing parts.
- The output size can be changed by adjusting the gap between the impact plate and the rotor.
- The output shape is close to spherical, without flaky shape, meeting high standards of concrete requirements
Product Parameter
PF Model
Standard model with a smaller feed opening, suitable for use as secondary crushers in production lines, crush high hardness stone
LF Model
Special model with a larger feed opening size, suitable for low hardness stones only, such as construction waste stone and limestone.
| Model | 1007 | 1010 | 1210 | 1214 | 1315 | 1320 |
|---|---|---|---|---|---|---|
| Capacity(tph) | 40 | 70 | 120 | 150 | 200 | 250 |
| Feed Size(mm) | <250 | <300 | <300 | <300 | <350 | <500 |
| Out Size(mm) | <20 | <20 | <35 | <35 | <50 | <50 |
| Power(kw) | 55 | 75 | 110 | 132 | 200 | 250 |
| Weight(tons) | 7.5 | 11 | 14 | 17 | 21 | 48 |
All technical parameters listed are for reference only and may be adjusted according to actual operating conditions.
| Model | 150 | 250 | 350 |
|---|---|---|---|
| Capacity(tph) | 80-100 | 120-150 | 150-250 |
| Feed Size(mm) | 820x980 | 960x1360 | 1050x1700 |
| Out Size(mm) | <60 | <60 | <60 |
| Power(kw) | 160 | 250 | 400 |
| Weight(tons) | 12 | 17 | 24 |
All technical parameters listed are for reference only and may be adjusted according to actual operating conditions.
