Sand Crushing Machine

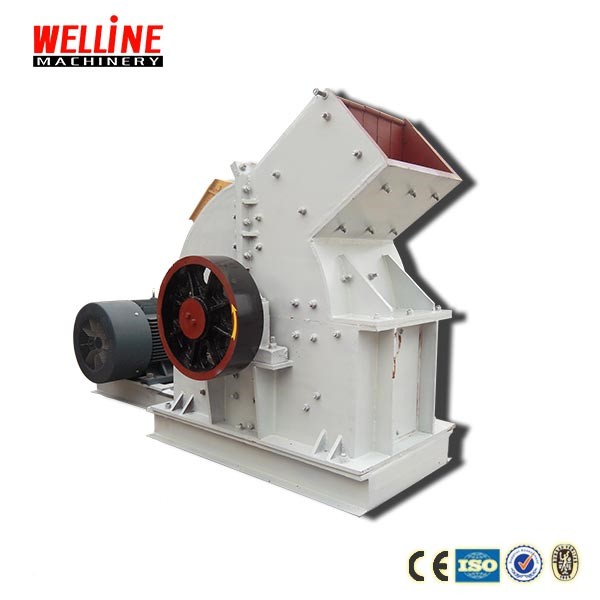

Hammer Crusher
Application: Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Sand Making, Chemical, Road, Railway
Crushing Material: Granite, dolomite, pebble, quartzite, calcite and so on.
Product Description
The hammer mill crusher is mainly PC series. With the development of the industry, the hammer crusher is constantly being improved. The heavy hammer crusher is its upgraded version, and the PCZ is the main series.
In terms of applicability and principle, there is almost no difference between them, except the difference is in the configuration position of the production line and the performance of the hammer.
What can this machine do?
-Make more sand in the current production line, usually less than 15mm
The feed size and discharge size are related to the equipment model. The larger the equipment model, the larger the input size and output size.
Product Advantages
- With high productivity and large crushing ratio (generally 10-25, even to 50), it is often used in large-scale and high-yield production lines.
- It can reduce the cost by about 40% by one-time moulding without secondary crushing and shaping process.
- The discharging particle size is small, uniform and cubic with less over crushing.
Product Parameter
Normal Model

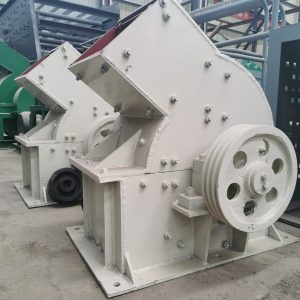

Small capacity, max 100 tons per hour.
Heavy Model

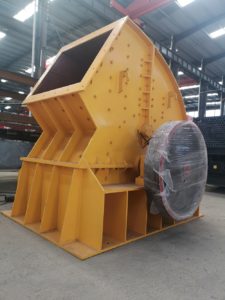

Bigger capacity, more than 100 tons per hour.
| Model | 300x400 | 350x500 | 400x600 | 600x800 | 800x1000 |
|---|---|---|---|---|---|
| Capacity(tph) | 5-10 | 8-15 | 10-25 | 20-50 | 20-75 |
| Feed Size(mm) | <100 | <100 | <220 | <350 | <400 |
| Out Size(mm) | <15 | <15 | <15 | <15 | <15 |
| Power(kw) | 11 | 18.5 | 22 | 55 | 75 |
| Weight(tons) | 0.8 | 1.2 | 1.5 | 3.8 | 5.5 |
All technical parameters listed are for reference only and may be adjusted according to actual operating conditions.
| Model | 1308 | 1510 | 1615 | 1620 | 1820 |
|---|---|---|---|---|---|
| Capacity(tph) | 100-160 | 160-210 | 420-500 | 800-1000 | 1000-1200 |
| Feed Size(mm) | <600 | <700 | <1000 | <1200 | <1200 |
| Power(kw) | 132 | 132*2 | 200*2 | 400*2 | 450*2 |
All technical parameters listed are for reference only and may be adjusted according to actual operating conditions.
